1교시
new>스프링레거시프로젝트>스프링mvc프로젝트>도메인 주소 입력 org.mask.controller

기본세팅 : 버전바꾸기>자바, pom.xml

*pom.xml

<properties>
		<java-version>11</java-version>
		<org.springframework-version>5.0.7.RELEASE</org.springframework-version>
		<org.aspectj-version>1.6.10</org.aspectj-version>
		<org.slf4j-version>1.6.6</org.slf4j-version>
</properties>

RELEASE 뭔지 찾아보기

*자바버전 바꾸기1*

프로젝트 클릭>Properties 들어가기>Project Facets> Java :11로 변경

*자바버전 바꾸기2*

Properties>Java Build Path> Libraries>Modulepath>Edit> JavaSE-11 변경

*필요한 것 넣어주기 (pdf 참고)

저장소 추가 pom.xml >자바 버전 바꾼 <properties>아래 <repositories></repositories> 넣어주기

	<repositories>
		<repository>
			<id>mvn2</id>
			<url>http://repo1.maven.org/maven2</url>
			<releases>
				<enabled>true</enabled>
			</releases>
			<snapshots>
				<enabled>true</enabled>
			</snapshots>
		</repository>
		<repository>
			<id>egovframe</id>
			<url>http://www.egovframe.go.kr/maven</url>
			<releases>
				<enabled>true</enabled>
			</releases>
			<snapshots>
				<enabled>false</enabled>
			</snapshots>
		</repository>
	</repositories>

넣어주기.

mybatis - spring, mairadb,------.jar 추가 (메이븐 방식)

추가하고, pom.xml 오른쪽> 메이븐> 업데이트 프로젝트으로 업데이트 시켜주기

	<dependencies>
		<!-- spring jdbc -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>
		<!-- 전자정부 페이징 -->
		<dependency>
			<groupId>egovframework.rte</groupId>
			<artifactId>egovframework.rte.ptl.mvc</artifactId>
			<version>3.8.0</version>
		</dependency>
		<!-- 파일업로드 -->
		<dependency>
			<groupId>commons-fileupload</groupId>
			<artifactId>commons-fileupload</artifactId>
			<version>1.3.3</version>
		</dependency>
		<!-- mariadb-java-client -->
		<dependency>
			<groupId>org.mariadb.jdbc</groupId>
			<artifactId>mariadb-java-client</artifactId>
			<version>2.7.3</version>
		</dependency>
		<!-- mybatis -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>3.5.6</version>
		</dependency>
		<!-- mybatis-spring -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>1.3.2</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/com.zaxxer/HikariCP -->
		<dependency>
			<groupId>com.zaxxer</groupId>
			<artifactId>HikariCP</artifactId>
			<version>5.1.0</version>
		</dependency>

pom 추가한 것까지 최종

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>org.mask</groupId>
	<artifactId>controller</artifactId>
	<name>fed14</name>
	<packaging>war</packaging>
	<version>1.0.0-BUILD-SNAPSHOT</version>
	<properties>
		<java-version>11</java-version>
		<org.springframework-version>5.0.7.RELEASE</org.springframework-version>
		<org.aspectj-version>1.6.10</org.aspectj-version>
		<org.slf4j-version>1.6.6</org.slf4j-version>
	</properties>
	<repositories>
		<repository>
			<id>mvn2</id>
			<url>http://repo1.maven.org/maven2</url>
			<releases>
				<enabled>true</enabled>
			</releases>
			<snapshots>
				<enabled>true</enabled>
			</snapshots>
		</repository>
		<repository>
			<id>egovframe</id>
			<url>http://www.egovframe.go.kr/maven</url>
			<releases>
				<enabled>true</enabled>
			</releases>
			<snapshots>
				<enabled>false</enabled>
			</snapshots>
		</repository>
	</repositories>

	<dependencies>

		<!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-databind -->
		<dependency>
			<groupId>com.fasterxml.jackson.core</groupId>
			<artifactId>jackson-databind</artifactId>
			<version>2.16.1</version>
		</dependency>

		<!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<version>1.18.30</version>
			<scope>provided</scope>
		</dependency>

		<!-- spring jdbc -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>
		<!-- 전자정부 페이징 -->
		<dependency>
			<groupId>egovframework.rte</groupId>
			<artifactId>egovframework.rte.ptl.mvc</artifactId>
			<version>3.8.0</version>
		</dependency>
		<!-- 파일업로드 -->
		<dependency>
			<groupId>commons-fileupload</groupId>
			<artifactId>commons-fileupload</artifactId>
			<version>1.3.3</version>
		</dependency>
		<!-- mariadb-java-client -->
		<dependency>
			<groupId>org.mariadb.jdbc</groupId>
			<artifactId>mariadb-java-client</artifactId>
			<version>2.7.3</version>
		</dependency>
		<!-- mybatis -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>3.5.6</version>
		</dependency>
		<!-- mybatis-spring -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>1.3.2</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/com.zaxxer/HikariCP -->
		<dependency>
			<groupId>com.zaxxer</groupId>
			<artifactId>HikariCP</artifactId>
			<version>5.1.0</version>
		</dependency>

		<!-- Spring -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${org.springframework-version}</version>
			<exclusions>
				<!-- Exclude Commons Logging in favor of SLF4j -->
				<exclusion>
					<groupId>commons-logging</groupId>
					<artifactId>commons-logging</artifactId>
				</exclusion>
			</exclusions>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>

		<!-- AspectJ -->
		<dependency>
			<groupId>org.aspectj</groupId>
			<artifactId>aspectjrt</artifactId>
			<version>${org.aspectj-version}</version>
		</dependency>

		<!-- Logging -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>${org.slf4j-version}</version>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>jcl-over-slf4j</artifactId>
			<version>${org.slf4j-version}</version>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-log4j12</artifactId>
			<version>${org.slf4j-version}</version>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>log4j</groupId>
			<artifactId>log4j</artifactId>
			<version>1.2.15</version>
			<exclusions>
				<exclusion>
					<groupId>javax.mail</groupId>
					<artifactId>mail</artifactId>
				</exclusion>
				<exclusion>
					<groupId>javax.jms</groupId>
					<artifactId>jms</artifactId>
				</exclusion>
				<exclusion>
					<groupId>com.sun.jdmk</groupId>
					<artifactId>jmxtools</artifactId>
				</exclusion>
				<exclusion>
					<groupId>com.sun.jmx</groupId>
					<artifactId>jmxri</artifactId>
				</exclusion>
			</exclusions>
			<scope>runtime</scope>
		</dependency>

		<!-- @Inject -->
		<dependency>
			<groupId>javax.inject</groupId>
			<artifactId>javax.inject</artifactId>
			<version>1</version>
		</dependency>

		<!-- Servlet -->
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>servlet-api</artifactId>
			<version>2.5</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet.jsp</groupId>
			<artifactId>jsp-api</artifactId>
			<version>2.1</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>

		<!-- Test -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>4.7</version>
			<scope>test</scope>
		</dependency>
	</dependencies>
	<build>
		<plugins>
			<plugin>
				<artifactId>maven-eclipse-plugin</artifactId>
				<version>2.9</version>
				<configuration>
					<additionalProjectnatures>
						<projectnature>org.springframework.ide.eclipse.core.springnature</projectnature>
					</additionalProjectnatures>
					<additionalBuildcommands>
						<buildcommand>org.springframework.ide.eclipse.core.springbuilder</buildcommand>
					</additionalBuildcommands>
					<downloadSources>true</downloadSources>
					<downloadJavadocs>true</downloadJavadocs>
				</configuration>
			</plugin>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-compiler-plugin</artifactId>
				<version>2.5.1</version>
				<configuration>
					<source>11</source>
					<target>11</target>
					<compilerArgument>-Xlint:all</compilerArgument>
					<showWarnings>true</showWarnings>
					<showDeprecation>true</showDeprecation>
				</configuration>
			</plugin>
			<plugin>
				<groupId>org.codehaus.mojo</groupId>
				<artifactId>exec-maven-plugin</artifactId>
				<version>1.2.1</version>
				<configuration>
					<mainClass>org.test.int1.Main</mainClass>
				</configuration>
			</plugin>
		</plugins>
	</build>
</project>

web.xml > 기본설정 한번씩 보기

	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>/WEB-INF/spring/root-context.xml</param-value>
	</context-param>

/를 들어오는 모든걸 잡아요

	<servlet-mapping>
		<servlet-name>appServlet</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>

servlet-context.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns="http://www.springframework.org/schema/mvc"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd
		http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">

	<!-- DispatcherServlet Context: defines this servlet's request-processing infrastructure -->

	<!-- Enables the Spring MVC @Controller programming model -->
	<annotation-driven />

	<!-- Handles HTTP GET requests for /resources/** by efficiently serving up static resources in the ${webappRoot}/resources directory -->
	<resources mapping="/resources/**" location="/resources/" />

	<!-- Resolves views selected for rendering by @Controllers to .jsp resources in the /WEB-INF/views directory -->
	<beans:bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<beans:property name="prefix" value="/WEB-INF/views/" />
		<beans:property name="suffix" value=".jsp" />
	</beans:bean>

	<context:component-scan base-package="org.mask.*" />

<context:component-scan base-package="org.mask.controller" />

*로 변경

<context:component-scan base-package="org.mask.*" />

<context:component-scan base-package="org.mask.*" /> 이 줄 아래에

추가하고 Spring 패키지에 db-Context.xml 만들어주러가기
<beans:import resource="classpath:/spring/db-Context.xml"/>

*src/main/resources>spring 패키지 만들기

spring 패키지> New Spring Bean Definition file> db-context.xml 파일 만들기

아래 파일을 만들면 된다.

db-Context.xml 안에 DB객체 명, sqlSessionFactory명, sqlSession명 적어주기

(따로 설명은 안한다. pdf 파일 참고하면 된다. )

P타입 value

R타입.

*src/main/resources>mybatis 패키지 만들기>config, mappers 패키지 만들기

(mybatis.config, mybatis.mappers 이름으로 만들면 mybatis 아래 생성된다. )

https://mybatis.org/mybatis-3/ko/getting-started.html

mybatis – 마이바티스 3 | 시작하기

mybatis.org

mappers 패키지>board-Mapper.xml 만들고 가져오기

아래 불러오는 내용 적어주기

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "https://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="board">
	<select id="boardList" resultType="HashMap">
		SELECT * FROM boardview LIMIT 0,10
	</select>

</mapper>

mybatis-Config.xml 만들고 가져오기

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "https://mybatis.org/dtd/mybatis-3-config.dtd">

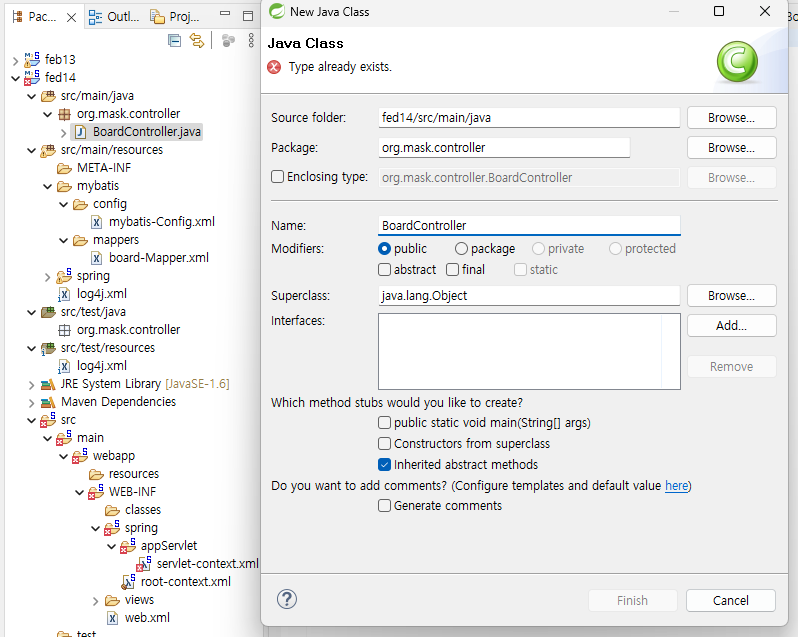

HomeController 삭제>BoardController 클래스 만들기

views>board.jsp 만들기

src/main/java 묶어서 만들어주기

이름에 맞게 어노테이션 넣어주기

service>@Service

package org.mask.service;

import org.springframework.stereotype.Service;

@Service
public class BoardService {

}

rpository>@ Rpository

package org.mask.dao;

import org.springframework.stereotype.Repository;

@Repository
public class BoardDAO {

}

board에 필요한 것 만들어주기

BoardController.java

//데이터 흐름
//controller -> service -> repository -> mybatis ->DB

package org.mask.controller;

import java.util.List;
import java.util.Map;

import org.mask.service.BoardService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;

/*
 * 스프링에서 객체 생성하는 방법은
 * @Controller
 * @Service
 * @Repository
 * @Component
 * */

@Controller
public class BoardController {
	//데이터 흐름
	//controller -> service -> repository -> mybatis ->DB

	@Autowired
	   private BoardService boardService;

	   @GetMapping({ "/board", "/" }) // 요청 들어와도 board 로 간다
	   public String board(Model model) {
	      List<Map<String, Object>> list = boardService.boardList();
	      model.addAttribute("list", list);
	      return "board"; // /WEB-INF/views/board.jsp 열어줘
	   }

	}

BoardService.java

package org.mask.service;

import java.util.List;
import java.util.Map;

import org.mask.dao.BoardDAO;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

@Service
public class BoardService {

   @Autowired
   private BoardDAO boardDAO;

   public List<Map<String, Object>> boardList(){
      return boardDAO.boardList2();
   }

}

BoardDAO

package org.mask.dao;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import org.apache.ibatis.session.SqlSession;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Repository;

@Repository
public class BoardDAO {

	@Autowired
	private SqlSession sqlSession;

	  public List<Map<String, Object>> boardList() {
	      return sqlSession.selectList("board.boardList"); // namespace, id 가져옴
	   }



	  public List<Map<String, Object>> boardList2() {
	      List<Map<String, Object>> list = new ArrayList<Map<String, Object>>();

	      Map<String, Object> map = new HashMap<String, Object>();
	      map.put("board_no", 1);
	      map.put("board_title", "첫번째 글");
	      map.put("board_write", "홍길동");
	      map.put("board_date", "24.02.01");
	      map.put("board_count", 1);
	      map.put("comment", 0);
	      list.add(map);

	      map = new HashMap<String, Object>();
	      map.put("board_no", 2);
	      map.put("board_title", "두번째 글");
	      map.put("board_write", "이길동");
	      map.put("board_date", "24.02.02");
	      map.put("board_count", 2);
	      map.put("comment", 1);
	      list.add(map);

	      map = new HashMap<String, Object>();
	      map.put("board_no", 3);
	      map.put("board_title", "세번째 글");
	      map.put("board_write", "정길동");
	      map.put("board_date", "24.02.03");
	      map.put("board_count", 3);
	      map.put("comment", 2);
	      list.add(map);

	      map = new HashMap<String, Object>();
	      map.put("board_no", 4);
	      map.put("board_title", "네번째 글");
	      map.put("board_write", "신길동");
	      map.put("board_date", "24.02.04");
	      map.put("board_count", 4);
	      map.put("comment", 3);
	      list.add(map);

	      map = new HashMap<String, Object>();
	      map.put("board_no", 5);
	      map.put("board_title", "다섯번째 글");
	      map.put("board_write", "김길동");
	      map.put("board_date", "24.02.05");
	      map.put("board_count", 5);
	      map.put("comment", 4);
	      list.add(map);

	      return list;
	   }
	}

board.jsp>

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
	<h1>게시판입니다. </h1>
	${list }
</body>
</html>

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
	<h1>게시판입니다. </h1>
	<table>
		<thead>
			<tr>
				<th>번호</th>
				<th>제목</th>
				<th>글쓴이</th>
				<th>날짜</th>
				<th>읽음</th>
			</tr>
		</thead>
		<tbody>
			<c:forEach items="${list }" var="row">
			<tr>
				<td>${row.board_no }</td>
				<td>${row.board_title }</td>
				<td>${row.board_write }</td>
				<td>${row.board_date }</td>
				<td>${row.board_count }</td>
			</tr>
			</c:forEach>
</body>
</html>

BoardController.java

package org.mask.controller;

import java.util.List;
import java.util.Map;

import javax.servlet.http.HttpServletRequest;

import org.mask.service.BoardService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;

/*
 * 스프링에서 객체 생성하는 방법은
 * @Controller
 * @Service
 * @Repository
 * @Component
 * */

@Controller
public class BoardController {
	//데이터 흐름
	//controller -> service -> repository -> mybatis ->DB

	@Autowired
	   private BoardService boardService;

	   @GetMapping({ "/board", "/" }) // 요청 들어와도 board 로 간다
	   public String board(Model model) {
	      List<Map<String, Object>> list = boardService.boardList();
	      model.addAttribute("list", list);
	      return "board"; // /WEB-INF/views/board.jsp 열어줘
	   }

	   @GetMapping("/detail")
	   public String detail(HttpServletRequest request, Model model) {
		   String no= request.getParameter("no");
		   System.out.println(no);
		   Map<String, Object> detail = boardService.detail(no);//지금은 스트링으로 다 쓰지만 변경할거다
		   model.addAttribute("detail", detail);

		   return "detail";
	   }

	}

저작자표시

'2023.11.21-2024.05.31' 카테고리의 다른 글

20240216 스프링4일차(util, error,modal) (0)	2024.02.16
20230215 스프링3일차() (0)	2024.02.15
20240213 스프링1일차(설치, 파일 위치, 의존성 주입) (1)	2024.02.13
240208 스프링 맛보기 (0)	2024.02.08
240207 게시판만들기 (0)	2024.02.07

들쑥날쑥

들쑥날쑥

태그

최근글

댓글

공지사항

아카이브

'2023.11.21-2024.05.31' 카테고리의 다른 글

관련글

티스토리툴바
